Description

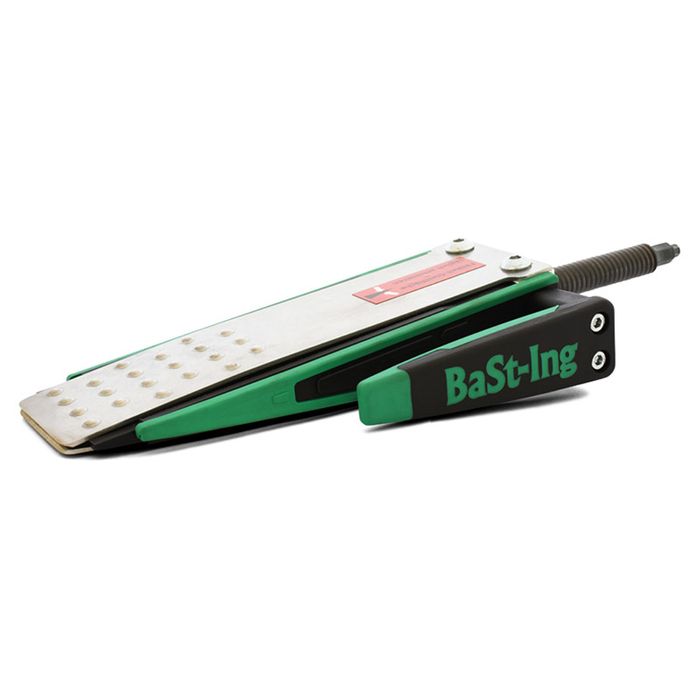

ValFix BaSt-Ing Spindle Wedge 15T

The ValFix is the newest, lightest, cheapest spindle wedge on the market and another real BaSt-Ing innovation. With a dead weight of less than 1.4kg and a lifting force of over 15t, it generates more than 1000g (!) Lifting force per 1g of dead weight.  A secret of the ValFix is that it works with a very flat wedge angle. Due to this small angle, it can be constructed particularly easily and still generate high lifting forces. Grease nipples on both threaded nuts ensure easy maintenance and sufficient lubrication even on long working days.

The ValFix has a very low wedge angle of 10° degrees and therewith high lifting capacity and low weight. Important is that the socket is always completely on the 10mm hex. For smaller trees (below 25cm), there is a risk of touching the breakline of the tree with the tip of the wedge. The ValFix may be operated with a maximum 650 Nm impact wrench.

Technical data at a glance:

• Maximum lifting capacity 15t
• Low wedge angle of 10°
• No axial bearing required due to the principle
• Low weight of 1.4kg
• Length/Width/Height: 330/135/50mm
• Easy lubrication using a grease nipple (no grease spray required)
• Max torque impact drive 650Nm

 Tip:  With the right choice of impact wrench, it can also be used for the grinder as well as for the depth gauge grinder. e.g. Bosch GDX 18V-200.
