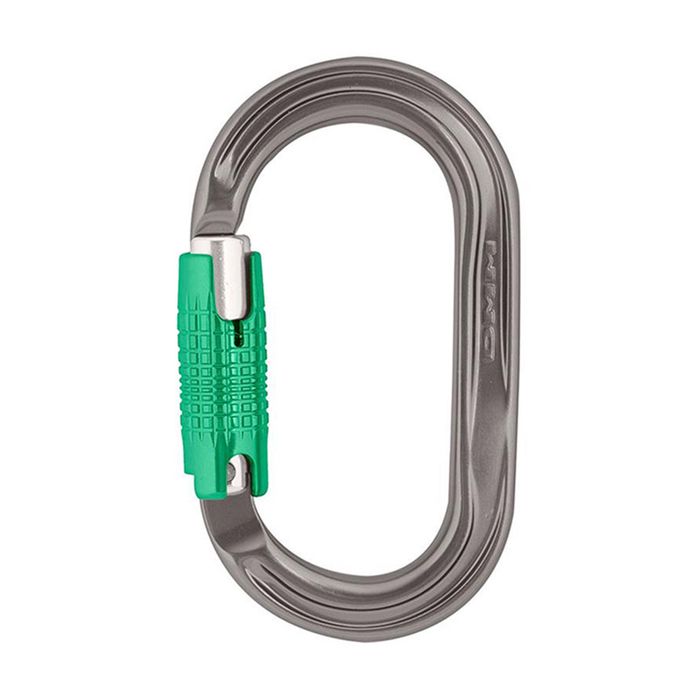

The Extra Caffeinated Oval

An oval that packs a punch. Larger than our classic Ultra O, it shares the same stable loading characteristics but with more volume when required. This addition to our oval connector range means we now have the compact PerfectO, the industry standard Ultra O and the larger AmericanO.

The AmericanO is also DMM's first ANSI (American National Standards Institute) compliant true oval connector. It is especially suited for industries that apply this standard. A DMM oval for all applications.


  • Our first ANSI compliant oval connector
  • True oval shape for predictable loading
  • Large size for use with gloves
  • Locksafe and Kwiklock gate options
  • Available with a removeable threaded captive bar


Locking system Locksafe
Gate opening 22mm
Major axis strength 25kN
Minor axis strength 9kN
Open gate strength 7kN
Blind Nose Yes
Colour Titanium/Green
Weight 74g
Height 114mm
Width 66mm
Body Material Aluminium
Approved Standards EN 362:2004 B/ T,
EN 12275:2013 B
