DMM Hitch Climber Eccentric Pack

Price:
$180.00 inc GST
Code:
PUL500-KIT

Description

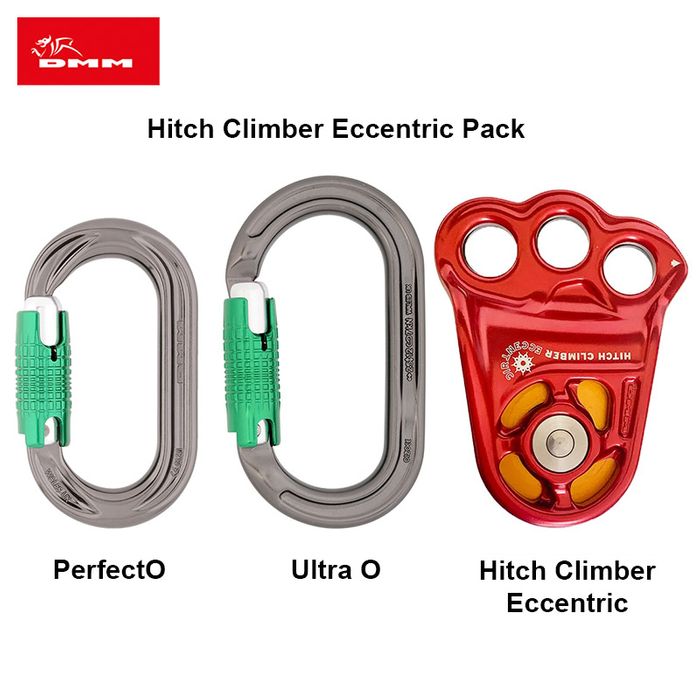

DMM Hitch Climber Eccentric Pack

DMM Logo 163 x 79

Includes:

DMM Hitch Climber Eccentric
DMM Ultra O - Locksafe
DMM PerfectO - Locksafe





DMM Hitch Climber Eccentric

DMM Logo 163 x 79

High performance geometry.

The eccentric geometry and fully-featured design of the Hitch Climber Eccentric is an evolution for the classic Hitch Climber system. It will advance your friction hitch earlier and fairlead your rope better for greater efficiency. The optimised fairlead flairs direct rope towards the sheave and improve slack handling.

Precision engineered to be very strong, light and rope friendly it has a striking design aesthetic. For friction hitch work positioning systems, whether with moving or stationary rope, it is the epitome of refinement.

Features:

  • New pushing plates advance friction hitches earlier and more efficiently
  • Optimised fairlead flairs
  • Three hole rig plate facilitates wide range of positioning systems and neatly organises connectors
  • Hot forged and CNC machined aluminium side plates
  • Large diameter high stiffness stainless steel axle assembly
  • Large sheave with efficient roller bearing
  • Corrosion resistant and tamper proof assembly
  • Weight optimised design
  • Patent pending



DMM Ultra O - Locksafe

DMM Logo 163 x 79



The ultra-light, clean nose Ultra O carabiners are the mainstay of our carabiner range, and for good reason. Not only do they give high strength to weight ratios and feel great in the hand, they also help to keep components of a system aligned. The deep symmetrical basket allows pulleys, webbing, ropes and even other carabiners to 'centre' naturally and still allow easy stacking of components on either side. A connecting classic.


Features:

  • Approved to EN362:2004/B
  • Oval shape allows central positioning of devices
  • I-Beam section for increased strength to weight ratio
  • Keylock clean nose for snag free connection
  • Hot forged and fully heat treated aluminium for lightness and maximum strength
  • Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
  • Recommended for use with pulleys and as a general connector
  • Individually marked for traceability





DMM PerfectO - Locksafe

DMM Logo 163 x 79



The PerfectO range uses a new extra short gate to make the profile as compact as possible, minimising eye-to-eye length whilst maintaining usability and easy one-handed use.
The true oval shape provides effective centring of loads and the fully rounded rope bearing areas increase carabiner and rope longevity. Its keylock nose allows snag-free operation. The straight gate version is ideally suited for racking gear and the colour options help to quickly differentiate between
equipment.

This is the smallest Locksafe gated carabiner that DMM makes and is 15mm shorter than an Ultra O yet still retains a strong construction.



Features:

  • Symmetric compact oval profile - minimum possible size abides by EN standards
  • I Beam technology only in non-rope bearing areas
  • Rope bearing areas are full round to increase carabiner and rope longevity
  • Locksafe
  • Keylock nose for snag-free operation







DMM Hitch Climber Eccentric

Product Code PUL500
Weight 144g
MBS 30kN
WLL 6kN
Sheave Diameter 42mm
Sheave Tread Diameter 28mm
Min Rope Diameter 7mm
Max Rope Diameter 14mm
Dimensions (W x H x D) 66 x 96 x 44mm



DMM ULTRA O - LOCKSAFE

Locking system Locksafe
Gate opening 19mm
Major axis strength 25kN
Minor axis strength 12kN
Open gate strength 7kN
Blind Nose Yes
Colour Titanium/Green
Weight 74g
Height 109mm
Width 63mm
Body Material Aluminium
Approved Standards EN 362:2004 B/ T,
EN 12275:2013 B



DMM PerfectO - Locksafe

Weight 66 g
Height 95 mm
Width 56 mm
Gate opening gap 15 mm
Blindnose Yes
Body material Aluminium
Finish Anodised
Colour Titanium/Lime
MBS (Major Axis) 24 kN
MBS (Minor Axis) 7kN
MBS (Gate Open) 7kN
Approved Standards EN 362:2004
EN 12275:2013
