ISC Micrograb for 10.5-13mm Rope (Pip Pin)
Price:
$123.90 inc GST
Code:
RP209
Description

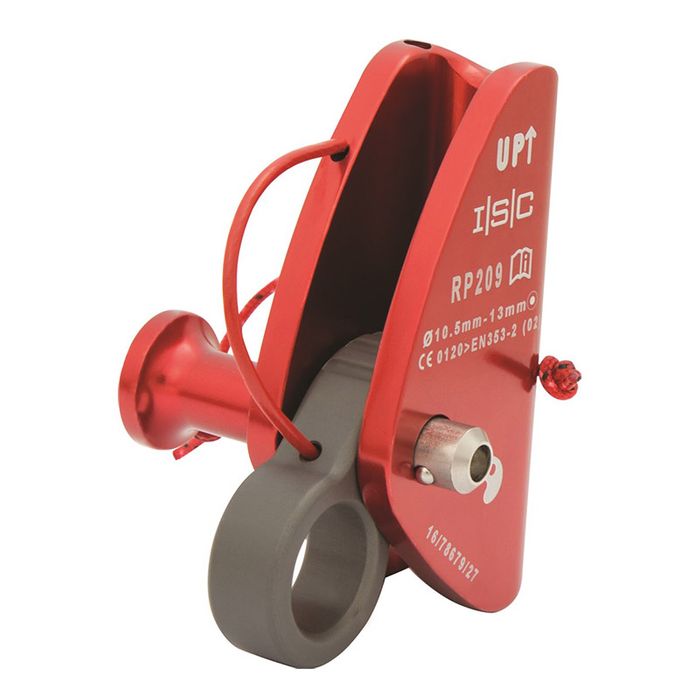

ISC Micrograb (Pip Pin)
The RP209 Ropegrab is fitted with a pip pin axle, making it quick and easy to attach/detach mid-line. A thumb operated push-button is used to disengage the Pip-pin mechanism and the axle has a chamfered end, to allow for easy location of the pin.
The RP209 model has a textile Pip-pin retention cord, (rather than a wire cord). The textile cord allows for easy manoeuvring of the pin and does not snag, or wear with sharp edges.
ISC also does a bolted version of this ropegrab (RP203).
Refurb kits for these are here ISC Refurb Kit.
| Weight | 177g |
| Height | 85mm |
| Width |
64mm |
| Pip Pin length |
63mm |
| Rope Diameter Range | 10.5 - 13mm |
| Body Material | Aluminium |
| Finish | Anodised |
| Colour | Red |
| Minimum Breaking Strength (kN) | Dependant on Rope Type |
| Approved Standards | CE EN 353-2, CE EN358 & NFPA 2001 |
 |
RP209 Product Datasheet |
|
RP209 User Instruction Manual |
|
RP209 Declaration of Conformity |
