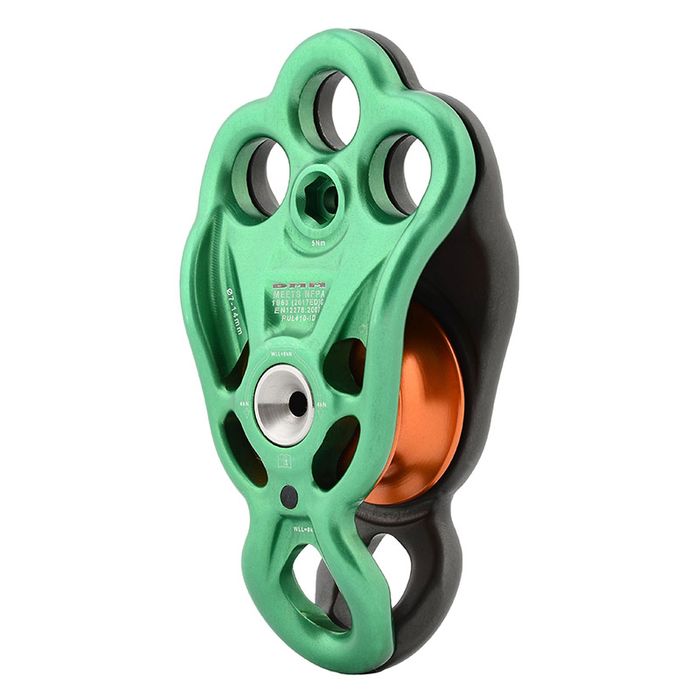

DMM Rigger Pulley Becket

Description

DMM Rigger Pulley Becket

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.

The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.

Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.

The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.

FEATURES

• Ultra-high strength pulley side plates
• High efficiency roller bearings
• Hollow axle for reduced weight
• Increased rope-bearing cross-section for textile attachments to the attachment holes
• Same sheave as previous Triple Attachment Pulley
• New axle design to increase robustness of the axle/nut to side plate interface
• Optional M5 nut and bolt for locking side plates together and can be installed from either side
• DMM iD optional
• Can be used as rig plate with or without sheave
