DMM Rigger Pulley

Price:
$114.50 inc GST
Availability:
In Stock
Code:
PUL400

Description

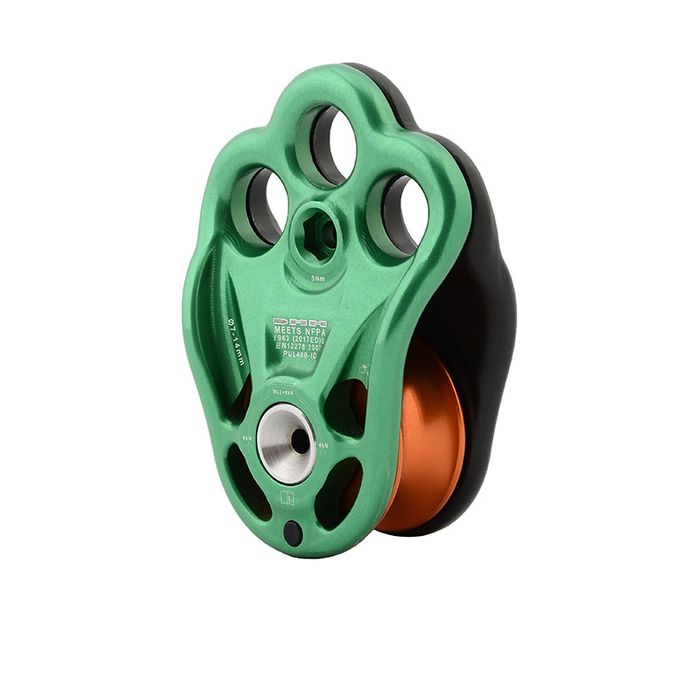

DMM Rigger Pulley

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.


The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.


Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.

The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.



FEATURES

  • Ultra-high strength pulley side plates
  • High efficiency roller bearings
  • Hollow axle for reduced weight
  • Increased rope-bearing cross-section for textile attachments to the attachment holes
  • Same sheave as previous Triple Attachment Pulley
  • New axle design to increase robustness of the axle/nut to side plate interface
  • Optional M5 nut and bolt for locking side plates together and can be installed from either side
  • DMM iD optional
  • Can be used as rig plate with or without sheave

  Rigger Pulley Rigger Pulley Becket
Rope 7 - 14mm 7 - 14mm
Dimensions 68 x 94mm 68 x 124
Sheave Diameter 28mm 28mm
Weight 176g 198g
WLL 8kN 8kN
MBS 40kN 40kN
Conformance EN12278:2007
NFPA 1983 (2017)G
EN12278:2007
NFPA 1983 (2017)G





PDF_32.png  Rigger Pulleys User Instructions
