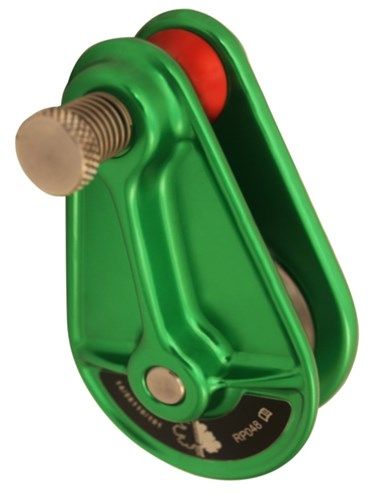

ISC Compact Rigging Block
Price:
$253.00 inc GST
Code:
RP048
Description
ISC Compact Rigging Block
At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).
The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.
Working Line (Grey Sheave):
13mm (1/2") - 38kN (8500lbf)
Topping Strop (Red Sheave):
16mm (5/8") - 74kN (16650lbf)
The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
| Weight | 490g |
| Length | 125mm |
| Width | 76mm |
| Thickness | 53mm |
| Rope diameter range: Working Line | Max 13mm |
| Rope diameter range: Topping Strop | 16mm |
| Main wheel colour | Grey |
| Fixed wheel colour | Red |
| Body material | Forged Aluminium |
| Wheel material | Aluminium |
| Finish | Anodised |
| Colour | Green/Grey |
| Safe working load (WLL) | 17kN |
| Minimum Breaking Strength (MBS) | 85kN |
| Approved standards | CE 0120 |
 |
