ISC Stainless Steel Rigging Block
Description
ISC Stainless Steel Rigging Block

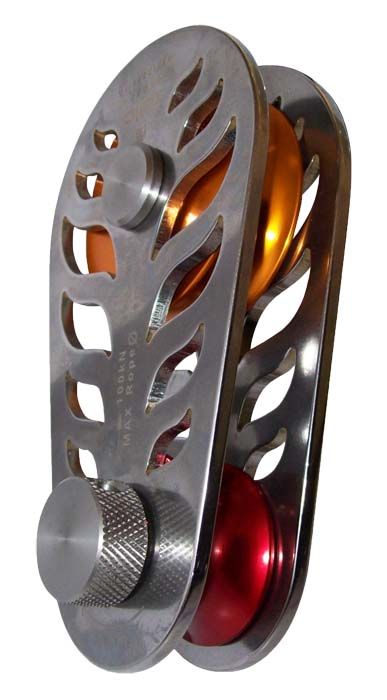

The ISC RP056 rigging block has sideplates made from durable stainless steel that have a unique flame pattern design that helps to reduce the overall weight of the product. This block has a screwlock system for the top pin. ISC have introduced a new fixed bollard dimension, which allows the user to fall in-line with rigging standard practice, whereby the Anchor/Topping Strop should be twice the Strength of the Working Line.
Safe working load 20kN. Min. breaking strain 100kN. 16mm rope capacity and is able to take 25mm Topping strop
|
Weight |
1400g |
|
Length |
182mm |
|
Width |
99mm |
|
Thickness |
57mm |
|
Rope diameter range: Working Line |
Max 16mm |
|
Rope diameter range: Topping Strop |
25mm |
|
Main wheel colour |
Orange |
|
Fixed wheel colour |
Red |
|
Body material |
Stainless Steel |
|
Wheel material |
Aluminium |
|
Wheel Finish |
Anodised |
|
Colour |
Natural |
|
Safe working load (WLL) |
2000kg |
|
Minimum Breaking Strength (MBS) |
100 kN |
|
Approved standards |
EN1278:07 |
 |
Product Datasheet - RP056 |
|
User Instruction Manual - RP056 |
