36" Alaskan Mk IV Chainsaw Mill

Price:
$680.00 inc GST
Code:
G778-36

Description

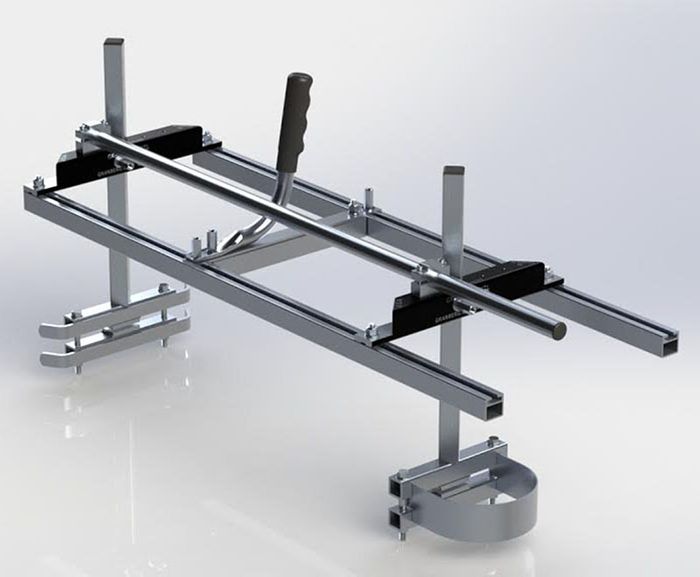

36" Alaskan MK IV Chainsaw Mill

Used for/with: Chainsaws with bars of 36" or less and 60cc or more displacement.

Fits: All Chainsaw makes.

General description: Basic Mill and 36-inch Handle and Rail Set: Tubular Aircraft aluminum extrusion and zinc-plated steel parts. Instruction manual & assembly hardware. High-quality U.S. made aircraft aluminum and steel. MADE IN THE USA.

Use description: This versatile, heavy-duty chainsaw lumber mill accurately cuts planks and beams up to 32" wide and 1/2" to 13" deep. Clamps onto your chainsaw bar with no drilling required. Lightweight and portable, enables user to mill lumber where the tree falls. No previous experience required! New CNC-Machined billet end brackets! (See photo) These new end brackets are more accurate, easier to adjust, create less vibration than the old die cast version and are virtually unbreakable. Perfect for homeowners, woodworkers, arborists and sawyers. Optimal results will be had when used in conjunction with ripping chain and an accurate first cut.

Assembly: This mill will need assembly, watch the video below for a guide.

 And then watch this video...

-Milling with the 36" Alaskan MK-IV (G778-36) with a Stihl 880 through some -Deodar Cedar.
-The Edging Mill (G555B) being used to square up the log to make dimensional lumber.
-Alaskan Small Log Mill slicing through some salvaged redwood. Using a Husq 372xp.

Basic Mill Chart

BAR SIZE MILL CUTTING WIDTH POWER
REQUIREMENTS
24" G778-24 16 - 17" 50cc
28" G778-30 21 - 22" 60cc
30" G778-30 23 - 24" 60cc
32" G778-30 25 - 26" 70cc
36" G778-36 29 - 30" 70cc
42" G778-48 35 - 36" 90cc
48" G778-48 41 - 42" 90cc
50" + G778-56 + 42" + 120cc
